Microtherm, Inc.

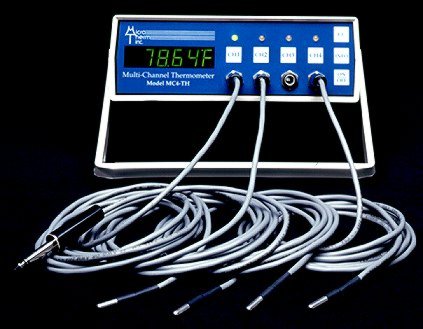

MC4-TH Multichannel Thermometer

{short description of image}

Click image for larger view

MC4-TH System Description

The modular MC4-TH thermistor thermometer and Central Panel Software allow the simultaneous monitoring of up to 32 temperature sensing probes from a single IBM compatible computer. The Central Panel Software, which runs under Microsoft Windows Version 3.1, Windows 95 and 98 allows the operator to set individual high and low alarm points for each channel. Up to 16,000 temperatures per channel can be recorded at intervals ranging from 1 second to 24 hours. Though the MC4-TH was designed primarily to be used with a host computer, it can also be used as an extremely accurate, stand-alone four channel thermometer.

{short description of image}

Specifications

  • Instrument Measurement Range: -70.0 degrees C to 130 degrees C (-94 degrees F to 266 degrees F)
  • Instrument Ambient Operating Range: 0 degrees C to 50 degrees C (32 degrees F to 122 degrees F)
  • Instrument Accuracy: +\- .5 degrees C (+\- .9 degrees F) within ambient temperature range 20 degrees C to 30 degrees C.
  • Uncalibrated probe tolerance typically +\- 0.2 degrees C.
  • Probe Sensor Type: Thermistor, 2000 to 10000 ohms @ 25 degrees C
  • Housing Dimensions: 2.8"H x 8.375"W x 9"D
  • Weight: 2 lbs. 14 oz.
  • Battery: 6 Volt Nicad battery pack

Features

  • Easy to read 5 digit LED display
  • Bi-color LEDs to display channel and alarm conditions.
  • Easy to use front panel buttons for channel selection, status information and toggling between degrees F and degrees C.
  • High and low alarm set points can be set over the RS-232 interface.
  • Software can accumulate up to 16,000 readings per channel for up to 32 channels.
  • Modular design allows scalable network of up to 8 units on a single RS-232 daisy chain.
  • Switch output (power output optional) upon alarm condition.
{short description of image}

Price

The MC4 list price is $995.00 and includes:

  • MC4 software (runs on Windows 3.1 or higher)
  • 9V power supply
  • NiCad rechargable batteries
  • 4 steel tip thermistor probes

Other probes are available on a custom basis. Please contact us if you have specific needs. Volume discounts and distributor pricing is available.

{short description of image}

Ready to order or need more info? Contact us by clicking below:
Information Request Form

Microtherm, Inc.
1020-B NW 6th St.
Gainesville, FL  32601

USA Toll Free: (800) 336-6649
Phone: (352) 336-6666
Fax: (954) 337-7786
E-mail: sales@microtherm.com
